Carbon Band Saw Blades

Raw Materials Chemical Composition

Grade	C%	Mn%	Si%	P%	S%	AI%	Mo%	Cr%	V%	Ni%
C67S	0.64-0.70	0.60-0.90	0.7-0.31	<0.035	<0.035	<0.01	–	0.15-0.25		<0.10
C75S	0.72-0.78	0.60-0.80	0.17-0.31	<0.025	<0.008	<0.01	–	0.20-0.30	–	<0.15
SK5	0.80-0.90	0.10-0.50	0.17-0.35	<0.03	<0.03	<0.01	0.06	<0.25	–	<0.20
C75Cr1	0.70-0.78	0.60-0.80	0.17-0.31	<0.03	<0.03	<0.01		0.30-0.50		<0.20
51CrV4	0.50-0.55	0.80-1.10	0.15-0.35	<0.025	<0.006	<0.035	<0.060	0.9-1.20	0.10-0.15	<0.15
SUBN-11	0.66-0.72	0.60-0.90	0.17-0.31	<0.035	<0.035	<0.01	–	0.15-0.25	–	1.0-1.30
SUBN-15	0.74-0.82	0.60-0.90	0.17-0.31	<0.035	<0.035	<0.01	–	0.15-0.25	–	1.8-2.20
C95S	0.93-0.99	0.30-0.50	0.15-0.30	<0.02	<0.02	<0.01	0.06	0.15-0.30	–	–
AISI420J2	0.25-0.35	≤1.0	≤1.0	<0.030	<0.030	<0.001	<0.001	12-14	–	<0.20

Tooth Punching

All kinds of wood band saw blades are available, tooth punching with various tooth forms and tooth pitch upon request.

Tooth Forms

" HS " Tooth Form

For logs cutting and frozen timber only.

" V " Tooth Form

Narrow band saw tooth form,
for frozen meat, bone and timeber cutting only.

" U " Tooth Form

Wide band saw tooth form for heavy-duty bandsaw machines,
also suitable for narrow band saw meat, frozen bone cutting only.

" WS " Tooth Form

For timber cutting.

Tooth Set

Tooth set protrude alternately left and right beyond the blade body.

Tooth Set (left and right)

Tooth Set ( left, right and straight)

Tooth Hardening

After tooth punching and tooth set, it will goes tooth hardening process to ensure the blade durable sharp against abrasion.

Welding

The up-to-date imported welding machines make the welding process more quality. size from 10mm to 260mm for all kinds of carbon band saw blades.

Narrow Bandsaw Blade for Woodworking

Steel Grade: CK75, C75Cr1, CK67, SK5, 51CrV4, CK95, CK100 etc. Welded in ring. Packing in coils ( 100 meters per coil)

Width		Thickness		Standard pitch tooth shape N		Weight
in	mm	BWG	mm	in	mm	Kg/100kg
1/4	6	27	0.40	0.16 (5/32)	4	1.6
1/4	6	25	0.50	0.16 (5/32)	4	1.9
5/16	8	23	0.60	0.20 (13/64)	5	3.1
3/8	10	25	0.50	0.20 (13/64)	5	3.4
3/8	10	23	0.60	0.24 (15/64)	6	3.9
1/2	12.5	25	0.50	0.24 (15/64)	6	4.5
1/2	12.5	23	0.60	0.24 (15/64)	6	5.3
5/8	15	23	0.60	0.28 (9/32)	7	6.3
3/4	20	23	0.60	0.28 (9/32)	7	9.5
3/4	20	22	0.70	0.31 (5/16)	8	10.0
1	25	25	0.50	0.31 (5/16)	8	9
1	25	23	0.60	0.31 (5/16)	8	11.2
1	25	22	0.70	0.35 (23/64)	9	12.6
1-1/4	30	22	0.70	0.39 (25/64)	10	15.2
1-3/8	35	21	0.80	0.39 (25/64)	10	20.5
1-1/2	40	21	0.80	0.41 (13/32)	10.5	23.6
1-3/4	45	20	0.90	0.43 (7/16)	11	26.9
2	50	20	0.90	0.43 (7/16)	11	30.4

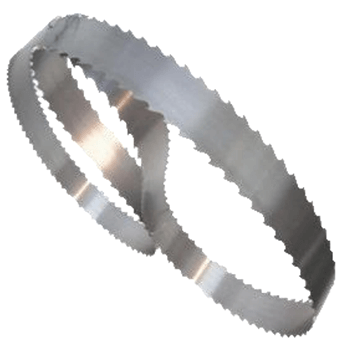

Wide Bandsaw Blades & Double Side Tooth Bandsaw Blades

Steel Grade: C67S, C75S, C75Cr1, SK5, 51CrV4, SUS420J2, M42 etc. Welded in ring. Packing in coils ( 100 meters per coil)

Width		Thickness		Kg/100m	Tooth / Pitch
in	mm	BWG	mm
2-3/8	60	20	0.90	40.3	Tooth Forms & Pitch Upon Request.
2-3/8	60	19	1.00	44.8
3	75	20	0.90	50.0
3	75	19	1.00	56.0
3-1/2	90	19	1.00	67.6
4	100	19	1.00	75.2
4	100	19	1.10	82.8
4	100	18	1.20	90.0
4-3/8	110	19	1.10	91.0
4-3/4	120	19	1.10	99.0
5-1/8	130	19	1.07	106.0
5-1/8	130	18	1.20	119.0
6	150	18	1.20	136.0
6	150	18	1.30	147.0
6-1/8	155	18	1.25	145.0
6-1/8	155	17	1.47	171.0
7	180	18	1.25	170.0
7	180	17	1.47	198.0
8	205	17	1.47	226.0
8	205	16	1.65	255.0
9	230	17	1.47	255.0
9	230	16	1.65	287.0
10	260	16	1.65	327.0
10	260	15	1.83	360.0

Narrow bandsaw blades for meat / bone cutting
